J44H angle stop valve

Quality stability: the implementation of the whole process of quality control, meticulous, all aspects of detection!
Reasonable price: effective internal cost control, reduce expenses, let the benefit of customers!
Fast delivery: advanced production line, sufficient stock, shorten the delivery time!

sell：021-32051999
sell：021-32050777
fax：021-66099555

Details

Product Introduction
Service Promise
Ordering Process

The opening and closing parts of the J44H Angle Globe valve are plug-shaped discs, the sealing surface is plane or conical, and the disc moves in a straight line along the center line of the fluid. The movement of the valve stem, there are lifting rod type (stem lifting, hand wheel does not rise and fall), there are also lifting rotating rod type (hand wheel and stem together with rotating lifting, nut set on the valve body).

Features of angle cut-off valves

1, simple structure, manufacturing and maintenance is more convenient.

2, the work stroke is small, the opening and closing time is short.

3, good sealing performance, small friction force between the sealing surfaces and long life.

Design and manufacture conform to Chinese national standard.

1, the basic form of structure: angle type

2. Nominal pressure: PN1.6-4.0 (MPa).

3, nominal diameter: DN15-300 (mm)

Application Specification for angle cut-off valves

遵循規范	STANDARD
設計與制造	GB12233/GB 12235
結構長度	GB 12221/JB96（長系列）
結構長度	GB78/JB79（GB、HG、SH）
壓力試驗	GB/T 13927
標志	GB 12220
供貨	GB/T12252

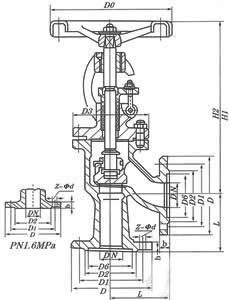

Main dimensions of Angle Globe Valves

J44H angle cut-off valve -1.6MPa

DN	in	L	D	D1	D2	f	b	z-φd	Do	H1	H2	W
15	1/2	65/90	95	65	45	2	14	4-φ14	100	240	265	7
20	3/4	75/95	105	75	55	2	16	4-φ14	100	245	270	7.5
25	1	80/100	115	85	65	2	16	4-φ14	120	250	275	8.5
32	2^1/4	95/105	135	100	78	2	18	4-φ18	140	260	290	12
40	2^1/2	100/115	145	110	85	2	18	4-φ18	140	290	325	14
50	2	115/125	160	125	100	2	20	4-φ18	160	300	335	19
65	2^1/2	145	180	145	120	2	20	4-φ18	180	355	400	27
80	3	155	195	160	135	2	22	4-φ18	240	400	450	42
100	4	175	215	180	155	2	24	8-φ18	240	455	495	50
125	5	200	245	210	185	2	26	8-φ18	280	530	560	64
150	6	240/225	280	240	210	2	28	8-φ23	320	605	650	85
200	8	275	335	295	265	2	30	8-φ23	360	650	770	155

J44 H 2.5MPa

DN	in	L	D	D1	D2	f	b	z-φd	Do	H1	H2	W
15	1/2	65/90	95	65	45	2	16	4-φ14	120	245	270	7.5
20	3/4	75/95	105	75	55	2	16	4-φ14	120	250	275	8.8
25	1	80/100	115	85	65	2	16	4-φ14	140	260	290	11
32	2^1/4	95/105	135	100	78	2	18	4-φ18	140	290	325	13
40	2^1/2	100/115	145	110	85	3	18	4-φ18	160	300	335	18
50	2	115/125	160	125	100	3	20	4-φ18	180	355	400	31
65	2^1/2	145	180	145	120	3	22	8-φ18	220	400	450	39
80	3	155	195	160	135	3	22	8-φ18	280	450	495	50
100	4	175	230	190	160	3	24	8-φ23	320	530	590	60
125	5	200	270	220	188	3	28	8-φ25	380	600	650	75
150	6	240/225	300	250	218	3	30	8-φ25	400	650	770	98
200	8	275	360	310	278	3	34	12-φ23	450	700	850	170
